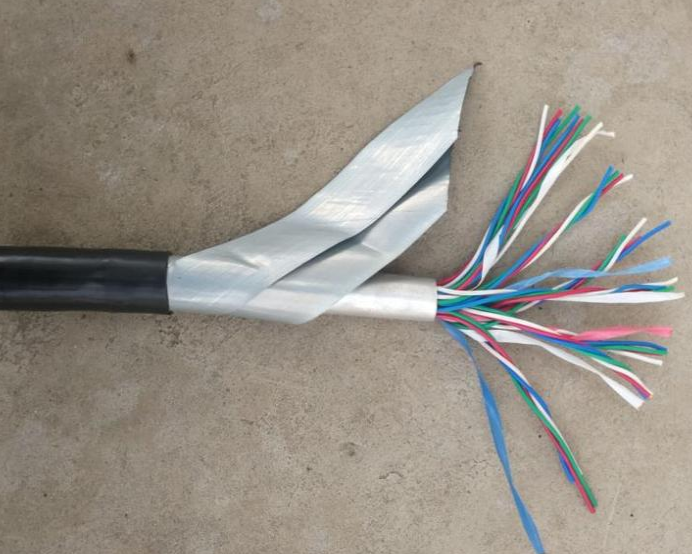

KVV22-24*1.5鎧裝控制電纜
KVV22-24*1.5鎧裝控制電纜特性 ●工頻額定電壓Uo/U為450/750V或0.6/1kV。 ●KVV22-24*1.5鎧裝控制電纜導體的允許長期***高工作溫度為70℃。 ●KVV22-24*1.5鎧裝控制電纜敷設時環境溫度應不低于0℃，若環境溫低于0℃時，應對電纜進行預熱。 ●電纜的推薦允許彎曲半徑如下： 無鎧裝電纜，應不低于電纜外徑的6倍； 鎧裝或銅帶屏蔽電纜，應不低于電纜外徑的12倍； 屏蔽軟電纜，應不低于電纜外徑的6倍
銷售范圍
|
型號 |
額定電壓 |
導體標稱截面 |
|||||||
|
1.0 |
1.5 |
2.5 |
4 |
6 |
10 |
|
|
||
|
芯數 |
|||||||||
|
KVV |
450/750V |
- |
2～61 |
2～14 |
2～10 |
||||
|
KVVP |
- |
2～61 |
2～14 |
2～10 |
|||||
|
KVVP2 |
- |
2～61 |
2～14 |
2～10 |
|||||
|
KVV22 |
- |
7～61 |
2～61 |
2～14 |
2～10 |
||||
|
KVV32 |
- |
19～61 |
7～61 |
2～14 |
2～10 |
||||
|
KVVR |
2～61 |
- |
|||||||
|
KVVRP |
2～61 |
2～48 |
- |
||||||
|
KVVP-22 |
- |
2～61 |
2～14 |
2～10 |
|||||
|
KVVP2-22 |
- |
2～61 |
2～14 |
2～10 |
|||||
結構尺寸銅芯聚lu乙烯絕緣聚lu乙烯護套控制電纜(KVV)
|
芯數及導體標稱截面 |
導體結構 |
絕緣厚度 |
護套厚度 |
電纜近似外徑 |
電纜近似重量 |
||||
|
NO./фmm |
mm |
mm |
mm |
kg/km |
|||||
|
- |
450/750V |
0.6/1kV |
450/750V |
0.6/1kV |
450/750V |
0.6/1kV |
450/750V |
0.6/1kV |
|
|
2×1 |
1/1.13 |
0.6 |
0.8 |
1.2 |
1.8 |
7.7 |
9.7 |
68 |
103 |
|
2×1 |
7/0.43 |
0.6 |
0.8 |
1.2 |
1.8 |
8.0 |
10.0 |
71 |
108 |
|
2×1.5 |
1/1.38 |
0.7 |
0.8 |
1.2 |
1.8 |
8.6 |
10.2 |
87 |
119 |
|
2×1.5 |
7/0.52 |
0.7 |
0.8 |
1.2 |
1.8 |
8.9 |
10.5 |
94 |
124 |
|
2×2.5 |
1/1.78 |
0.8 |
0.8 |
1.2 |
1.8 |
9.8 |
11.0 |
120 |
148 |
|
2×2.5 |
7/0.68 |
0.8 |
0.8 |
1.2 |
1.8 |
10.3 |
11.5 |
127 |
157 |
|
2×4 |
1/2.25 |
0.8 |
1.0 |
1.2 |
1.8 |
10.7 |
12.7 |
158 |
205 |
|
2×4 |
7/0.85 |
0.8 |
1.0 |
1.2 |
1.8 |
11.3 |
13.3 |
166 |
215 |
|
2×6 |
1/2.76 |
0.8 |
1.0 |
1.2 |
1.8 |
11.7 |
13.7 |
207 |
258 |
|
2×6 |
7/1.04 |
0.8 |
1.0 |
1.2 |
1.8 |
12.4 |
14.4 |
216 |
269 |
|
2×10 |
7/1.35 |
1.0 |
1.0 |
1.5 |
1.8 |
15.7 |
16.3 |
353 |
374 |
|
3×1 |
1/1.13 |
0.6 |
0.8 |
1.2 |
1.8 |
8.0 |
10.1 |
83 |
122 |
|
3×1 |
7/0.43 |
0.6 |
0.8 |
1.2 |
1.8 |
8.4 |
10.4 |
87 |
127 |
|
3×1.5 |
1/1.38 |
0.7 |
0.8 |
1.2 |
1.8 |
9.0 |
10.6 |
109 |
143 |
|
3×1.5 |
7/0.52 |
0.7 |
0.8 |
1.2 |
1.8 |
9.4 |
11.0 |
113 |
149 |
|
3×2.5 |
1/1.78 |
0.8 |
0.8 |
1.2 |
1.8 |
10.3 |
11.5 |
153 |
183 |
|
3×2.5 |
7/0.68 |
0.8 |
0.8 |
1.2 |
1.8 |
10.8 |
12.0 |
162 |
193 |
|
3×4 |
1/2.25 |
0.8 |
1.0 |
1.2 |
1.8 |
11.3 |
13.4 |
206 |
259 |
|
3×4 |
7/0.85 |
0.8 |
1.0 |
1.2 |
1.8 |
11.9 |
14.0 |
215 |
270 |
|
3×6 |
1/2.76 |
0.8 |
1.0 |
1.5 |
1.8 |
13.0 |
14.5 |
292 |
332 |
|
3×6 |
7/1.04 |
0.8 |
1.0 |
1.5 |
1.8 |
13.8 |
15.2 |
302 |
344 |
|
3×10 |
7/1.35 |
1.0 |
1.0 |
1.5 |
1.8 |
16.6 |
17.2 |
467 |
490 |
